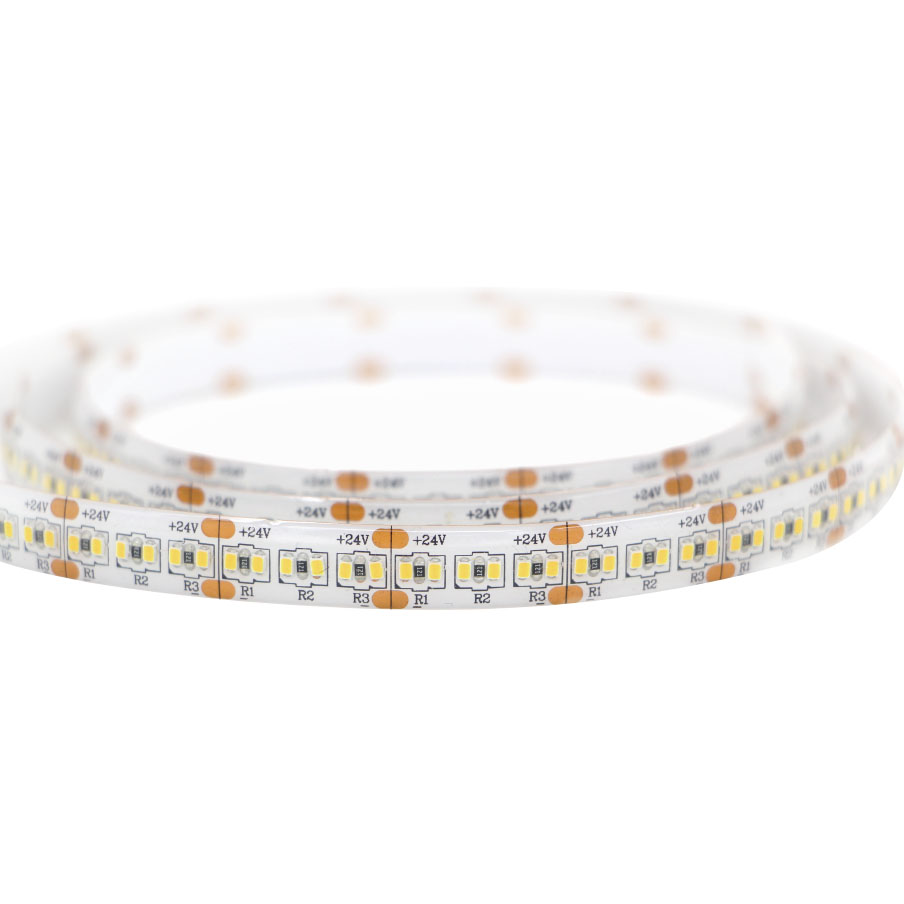

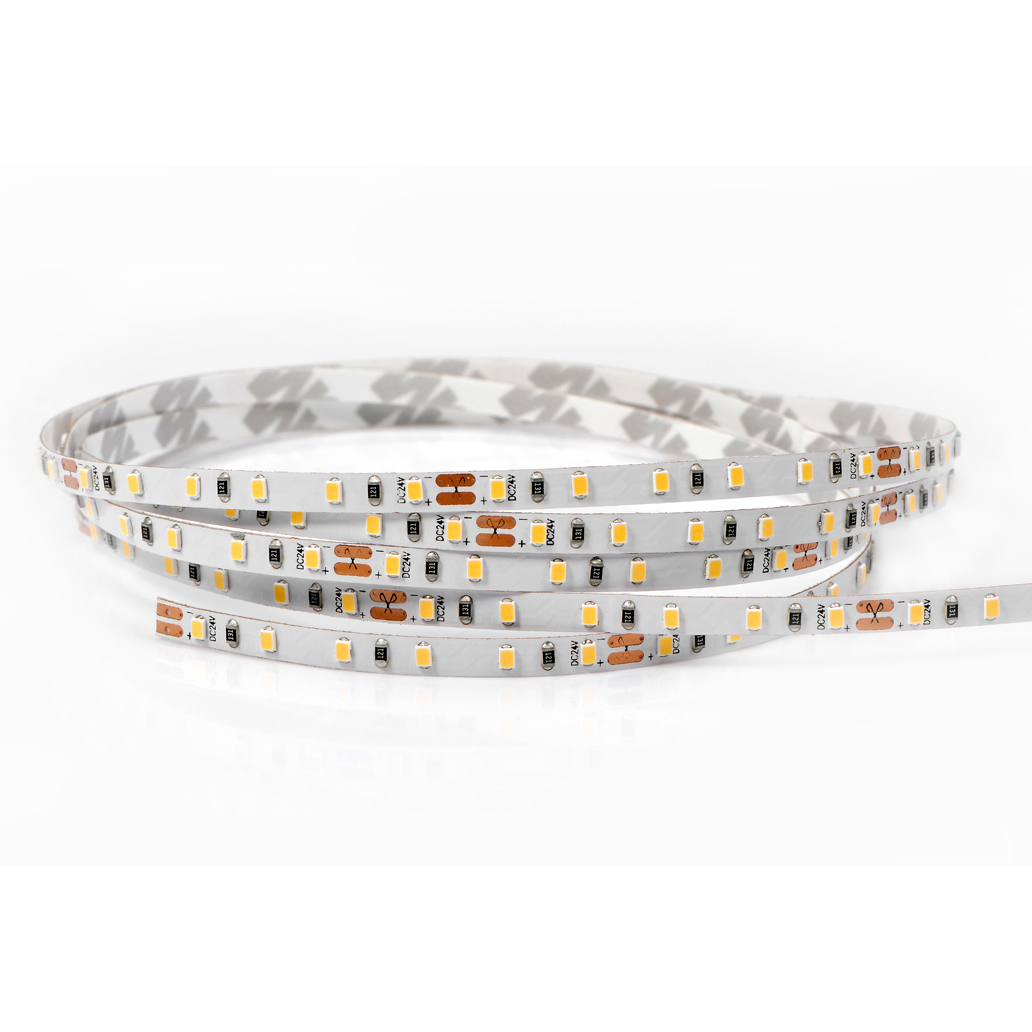

SMD2216 small size chip 2.2 mm x 1.6 mm, super high illumination
15 watts / m , 24VDC , Waterproof IP62 , IP65, IP67, IP68 available

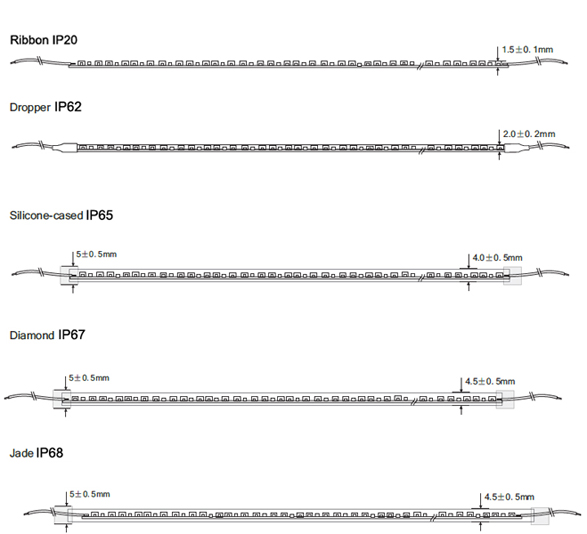

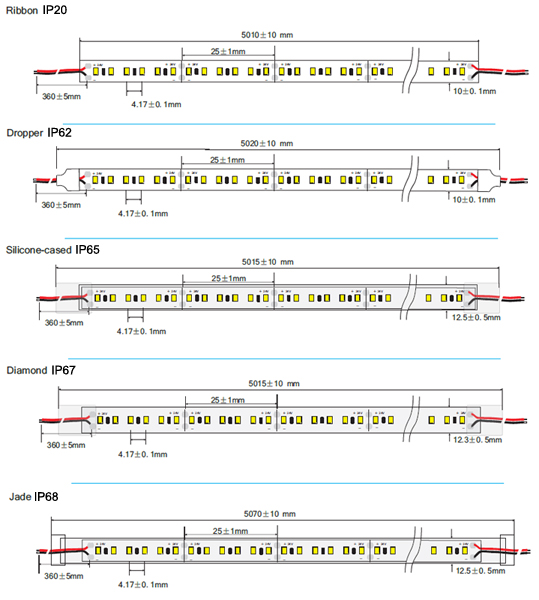

Front :
Lateral:

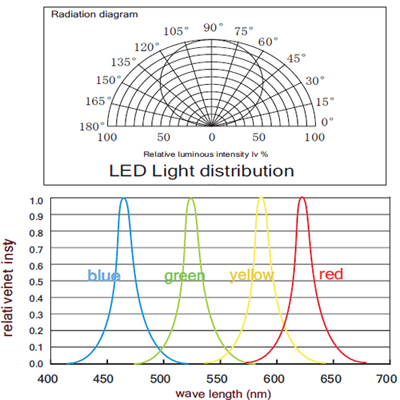

| Beam Angle | 120degrees | Rated Power | 15 Watts / m |
| Connection Type | Pigtail | Dimension | 5000 mm * 10 mm |
| Dimmable | Dimmable | Housing Finish | White |
| LED Brand | Epstar | LED Quantity | 240 LEDs / m |
| LED Type | 2216 SMD | Standards And Certifications | CE / ROHS / FCC |
| Special Features | Constant Voltage Power | Waterproof Grade | IP20, IP62, IP65, IP67, IP68 |
| Input Voltage | 12-24 VDC | Packing Dimension | 37 (cm) x 25 (cm) x 25 (cm) |

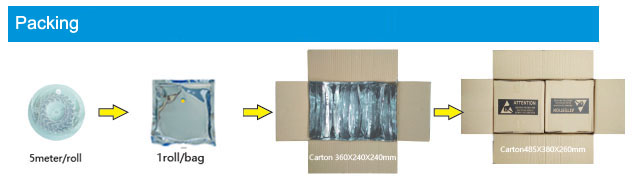

| Packing | 5m/roll , 25rolls/ctn, | Packing Weight | 7.0 kg |
All specifications are subject to change without notice.

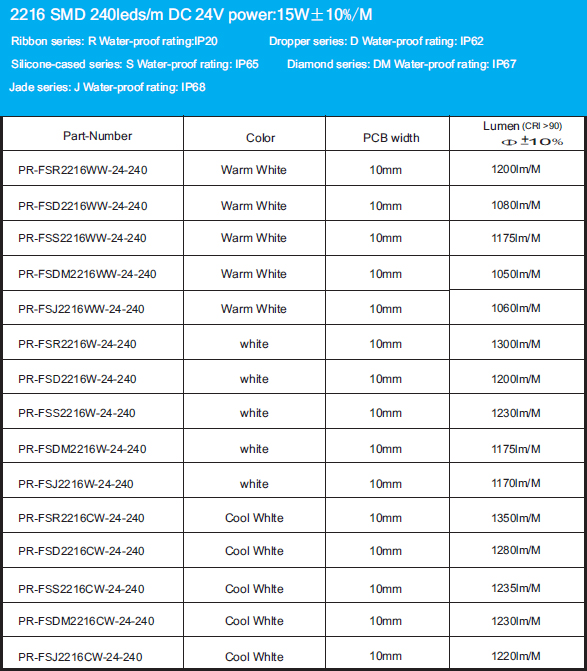

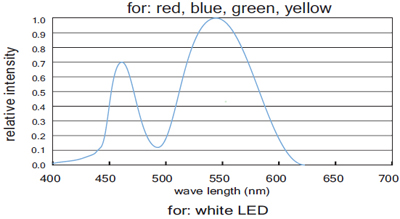

| Emitting Color | Intensity | CCT/Wavelength | CRI | Luminous Efficiency | |
|---|---|---|---|---|---|
| Pure White |
|
1350 lm/ watt |
5700-6200K | 90 |
|
| Warm White |
|
1200 lm/ watt |
2700-3200k | 90 |
|
| Nature White |
|
1300 lm/ watt |
4000-4500K | 90 |
|
| Red |
|
|
|
|
|
| Green |
|
|
|
|
|
| Blue |
|
|
|
|
|
| Yellow |
|
|
|
|
|
| Purple |
|
|
|
|
|
| RGB |
|
|
|
|
|
| RGB+CW |
|
|
|
|
|
| RGB+WW |
|
|
|
|
|
All specifications are subject to change without notice.
