LED Strip Light Indoor RGB 14.4W 10mm-LED Strip

DESCRIPTION
SPECIFICATION
ACCESSORIES
APPLICATION

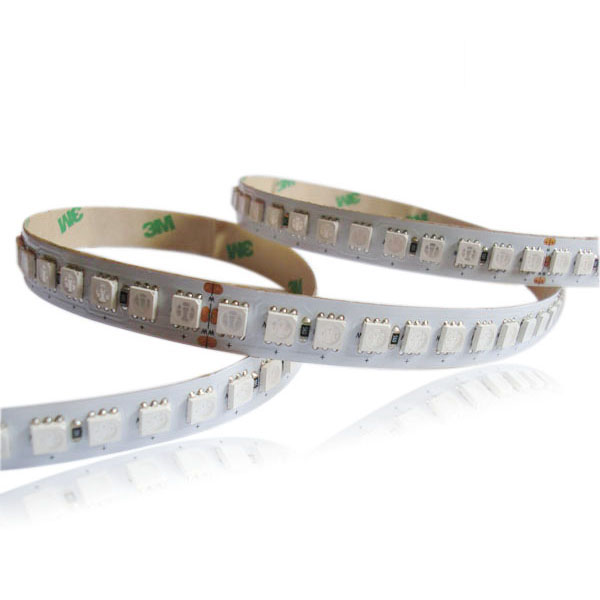

24VDC color changing RGB Lux LED Strip Light is using 252 super bright 3 in 1 RGB SMD 5050 LEDs per 118" to produce over 16 million shades of bright, vivid, and brilliant color. There are 6 5050 type surface mount LEDs every 2.75 inches. This 118" (3m) roll is excellent when you need a very colorful indoor or outdoor RGB light strip. Comes with 3M™ VHB™ mounting tape on the back, for the best long-term mounting solution. 54W of constant voltage 24VDC power needed for this 118" strip (5.4W per foot). This RBG LED light ribbon can be used for interior or entertainment lighting, bar lighting, casino lighting, any other indoor 24VDC application. Each roll includes bare wire at each end, all other accessories are sold separately. This LED Strip is UL Listed for class 2 luminaries and fixtures, RoHS and CE approved.

HIGH INTENSITY HIGH BRIGHTNESS

Specifications

Beam Angle	120degrees	Rated Power	14.4 Watts / m
Connection Type	Pigtail	Dimension	5000 mm * 10 mm
Dimmable	Dimmable	Housing Finish	White / Copper
LED Brand	Epstar	LED Quantity	60 LEDs / m
LED Type	5050 SMD	Standards And Certifications	CE / ROHS / FCC
Special Features	Constant Voltage Power	Waterproof Grade	IP33
Input Voltage	12-24 VDC	Packing Dimension	37 (cm) x 25 (cm) x 25 (cm)
Packing	5m/roll , 25rolls/ctn,	Packing Weight	6.5 kg

All specifications are subject to change without notice.

Emitting Color		Intensity	CCT/Wavelength	CRI	Luminous Efficiency
Pure White		1312.39lm	6000K	85	66.37lm / W
Warm White		1125.54lm /1164.02lm	2700K / 3000K	85	61.27lm / W
Nature White		1200.11lm	4000K	85	65.33lm / W
Red		-	-	-	-
Green		-	-	-	-
Blue		-	-	-	-
Yellow		-	-	-	-
Purple		-	-	-	-
RGB		-	-	-	-
RGB+CW	-	-	-	-	-
RGB+WW	-	-	-	-	-

All specifications are subject to change without notice.

S10-2CDH 10mm flexible light strips interconnect jumper, solder-less inserts and connects light strips. Adapter clamp on connectors pierce waterproof epoxy coating to make solid connection to strip's contacts.

S10-2CPTH 10mm Flexible Light Strip Solderless Clamp On Pigtail Adapter,10mm flexible light strips Solder-less clamp on pigtail adapter. Use for connecting Flexible Light Strips and Strip segments. Adapter clamp on connectors pierce waterproof epoxy coating to make solid connection to strip's contacts.

S10-2CH 2 Contact 10mm Flexible Light Strip Interconnect,10mm flexible light strips interconnect jumper, solder-less inserts and connects light strips. Adapter clamp on connectors pierce waterproof epoxy coating to make solid connection to strip's contacts.

S10-4CPTH Flexible Light Strip Pigtail Connector Clamp, RGB series pigtail connector clamp. 10mm wide and 15.24cm(6in) length. This non-waterproof connector requires additional steps to waterproof.

S14-5CPTH 5 Contact 14mm Flexible Light Strip Pigtail Connector for RGBW Strips, RGB series 5 channel pigtail connector for RGBW series light strips. 18mm wide and 20.35cm(8in) wire length.

S14-5CH 14mm flexible light strips interconnect jumper, solder-less inserts and connects RGBW series light strips. Adapter clamp on connectors make solid connection to strip's contacts.

CPS-EXT extension cable for CPS power supplies or BPS-12VDC-x battery power supplies with 5.5mm barrel connector. Available in 100cm(39.3in) or 300cm(118in) length and is for low voltage DC cables.

CPS-MxFSW-Plug and Play in-line switch for CPS series power supplies and products. ON/OFF switch with 1 female and 1 or 2 male 5.5mm barrel connectors. 5 amps max at 12VDC. 31.75cm(12.5in) wire length.

CPS-PT Pigtail CPS Power Adapter Cable, Pigtail wire leads power adapter cable for compact power supplies. Allows products with power wires to connect with 5.5mm barrel connector. 63.5cm(25in) length.

Waterproof Power Wires, includes one male and female connector with screw on cap. 5.5mm barrel plug. Connects to WLFA2-xW15SMD series strips. 17.78cm(7in) length.

Ideal LED Strip lighting applications for LED Ribbon Strip Lights include,
signage, interior/exterior lighting, back lighting, accent lighting,
under cabinet lighting, landscape lighting, bar lighting, club lighting,
architectural lighting and any other lighting projects.
