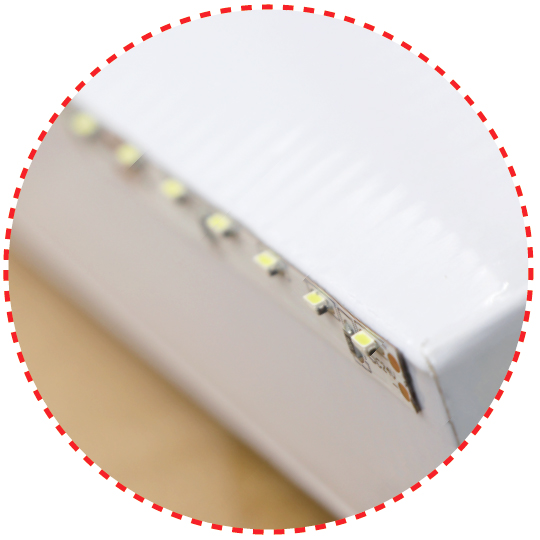

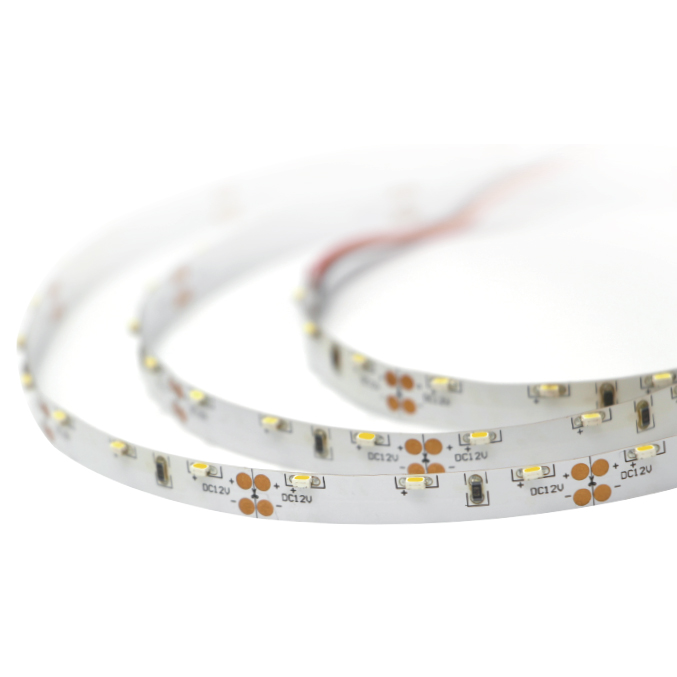

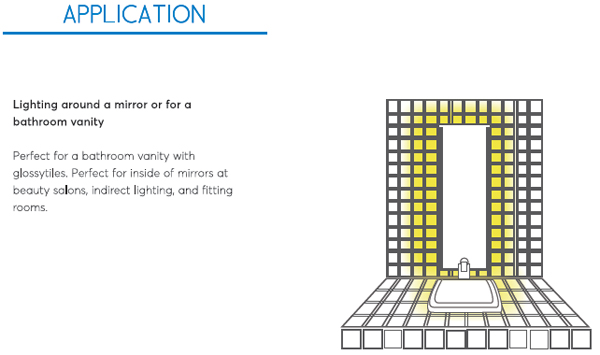

The side view 3014 led strip is perfect for extraordinary illumination effects such as curved counters, convex or concave surface. ect.
PCB Front View :

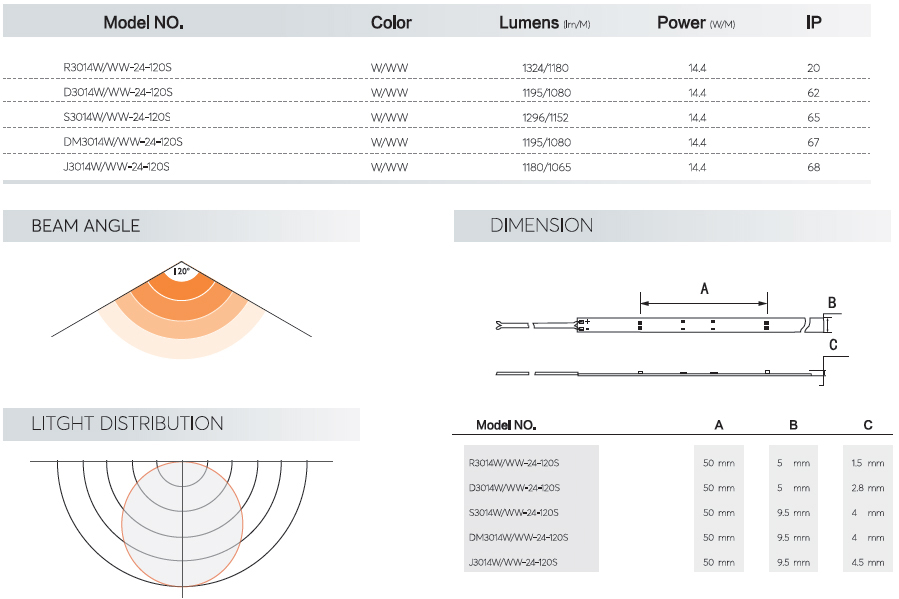

Specifications
| Beam Angle | 120degrees | Rated Power | 14.4 Watts / m |
| Connection Type | Pigtail | Dimension | 5000 mm * 5 mm |
| Dimmable | Dimmable | Housing Finish | White |
| LED Brand | Epstar | LED Quantity | 120 LEDs / m |
| LED Type | 3014 SMD | Standards And Certifications | CE / ROHS / FCC |
| Special Features | Constant Voltage Power | Waterproof Grade | IP20, IP62, IP65, IP67. IP68 |
| Input Voltage | 12-24 VDC | Packing Dimension | 37 (cm) x 25 (cm) x 25 (cm) |
| Packing | 5m/roll , 25rolls/ctn, | Packing Weight | 6.1 kg |
All specifications are subject to change without notice.
| Emitting Color | Intensity | CCT/Wavelength | CRI | Luminous Efficiency | |
|---|---|---|---|---|---|
| Pure White |
|
|
|
|
|
| Warm White |
|
|
|
|
|
| Nature White |
|
|
|
|
|
| Red |
|
|
|
|
|
| Green |
|
|
|
|
|
| Blue |
|
|
|
|
|
| Yellow |
|
|
|
|
|
| Purple |
|
|
|
|
|
| RGB |
|
|
|
|
|
| RGB+CW |
|
|
|
|
|
| RGB+WW |
|
|
|
|
|
All specifications are subject to change without notice.
