SP-GPA Series LED Garden Spot Light IP65 Surface Mounted Led Architectural Floodlights Outdoor Led Luminaires for Highlighting Facade Light Fixture

LED Garden Spot Light IP65 Waterproof Aluminum COB LED Single Color DC24V

New Design Surface Mounted LED Architectural Floodlights Outdoor LED Luminaires for Highlighting Facade Light Fixture

Housing： 12#Die-casting outdoor powder painting aluminum.T=60-80μm Adhesion of ISO Glass 1/ASTM Glass 4B

Glass: Tempered glass.T=8mm

Lens: Optical lens,effciency≥85%

Cable gland: IP68, PG9 nickel coated copper

Gasket: Molding shaped silicone double seal

LED: Epistar / CREE Ra>80

PCB: Excellent heat conductivity aluminum, co-effcient of heat conductivity≥2.0w/mk

Driver: Constant current output / single color LED=1-circuit output / RGB 3in1 LED=3-circuit output / RGBW in 1 LED = 4 circuit output

Working termperature: -20℃~40℃

Power cable: H05RN-F 2*0.75mm²L=1m(24VDC) / H05RN-F 3*0.75mm²L=1m(110V / 220VAC 50-60Hz) / H05RN-F 4*0.75mm²L=1m(for RGB) / H05RN-F 5*0.75mm²L=1m(for RGBW)

Spike: PVC; Mounting base / Pole: Powder painting die-casting aluninumle; Clamp Bracket: Stainless Steel 304/316

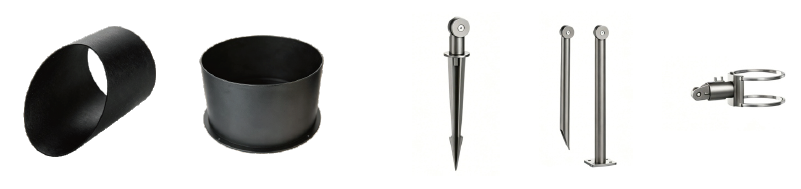

Anti-glare accessories : Honeycomb / Angled Snoot/ Full Snoot optional

Installation accessories: Spike, Pole, Clamp bracket optional

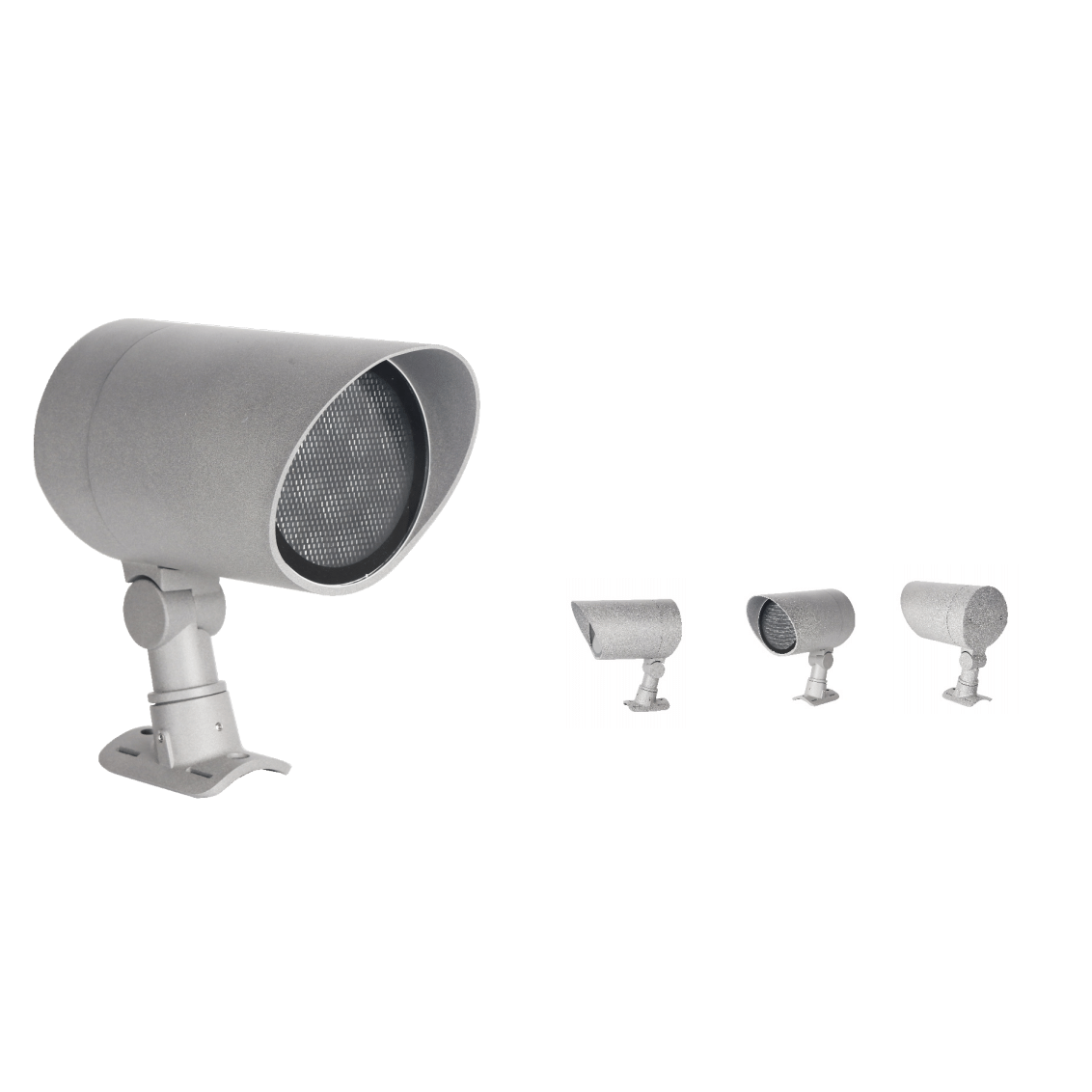

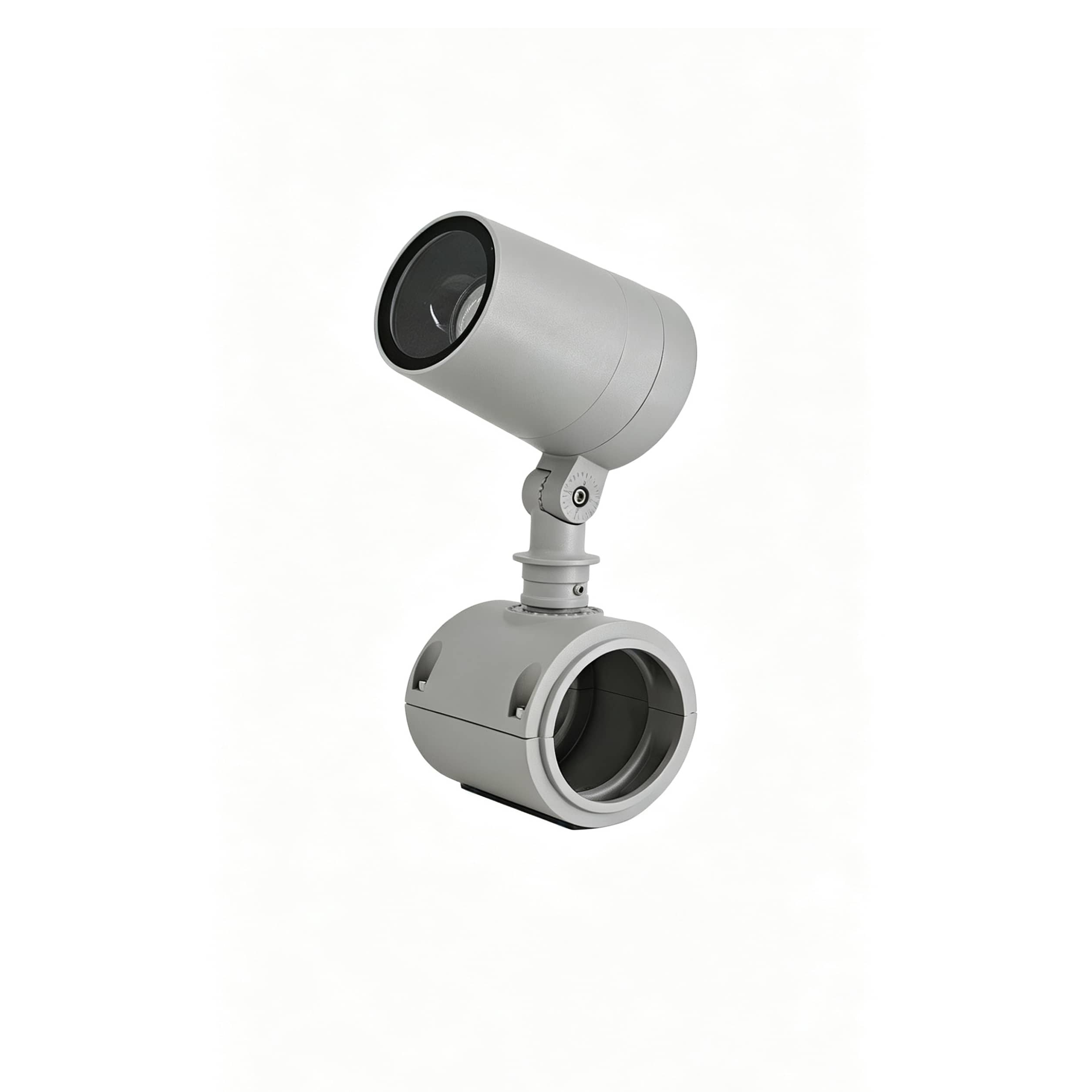

SP-GPA (1).png

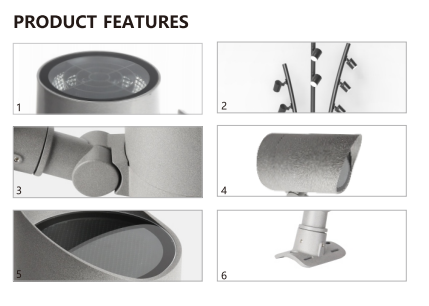

Patent design shelter inner wiring and structure to make appearance concise

One lamp with multiple installation ways, flexible combination and various lighting posts available

Die-casting alluminum housing, 8mm thickness safety glass, anti-glare grilles, silicone rubber gasket

Corrosion resisstance and self cleaning, reduce accumulation of dust

Provide a comfortable activity area for pedestrians.

Input Voltage(V)

AC100-305V 50-60Hz / 24VDC

IP Rating

IP66

Lamp Luminous Efficiency(lm/w)

Application

Landscape

Certification

CE, CQC, Emc, ETL, LVD

Lifespan (Hours)

50000

Color Rendering Index(Ra)

Material

Die-casting Aluminum

Working Time (hours)

50000

Lighting solutions service

Lighting And Circuitry Design

Light Source

COB / SMD

Beam Angle(°)

15 / 24 / 60 (for COB) / 5 /12 /20 /30 /60 /10x70/ 5x20 (for SMD)

Lamp Luminous Flux(lm)

2720 - 4250

Place of Origin

Shenzhen, China

Model Number

SP-GPA 120 / 140

Brand Name

Luxgreen

CRI (Ra>)

Working Temperature(℃)

-25 - 50

Working Lifetime(Hour)

50000

Product Name

Spotlight Lamp DC24V with Plug

Keyword

Garden Spotlight

Power

32 - 50 W

LED Chip

Osram / Cree chip

Waterproof

IP66 Outdoor

Driver

Meanwell in-built

Color

Single/RGBW

Input Voltage

AC100-305V / 24VDC

Warranty

3 Years

Material

Die-casting Aluminum + Tempered Glass

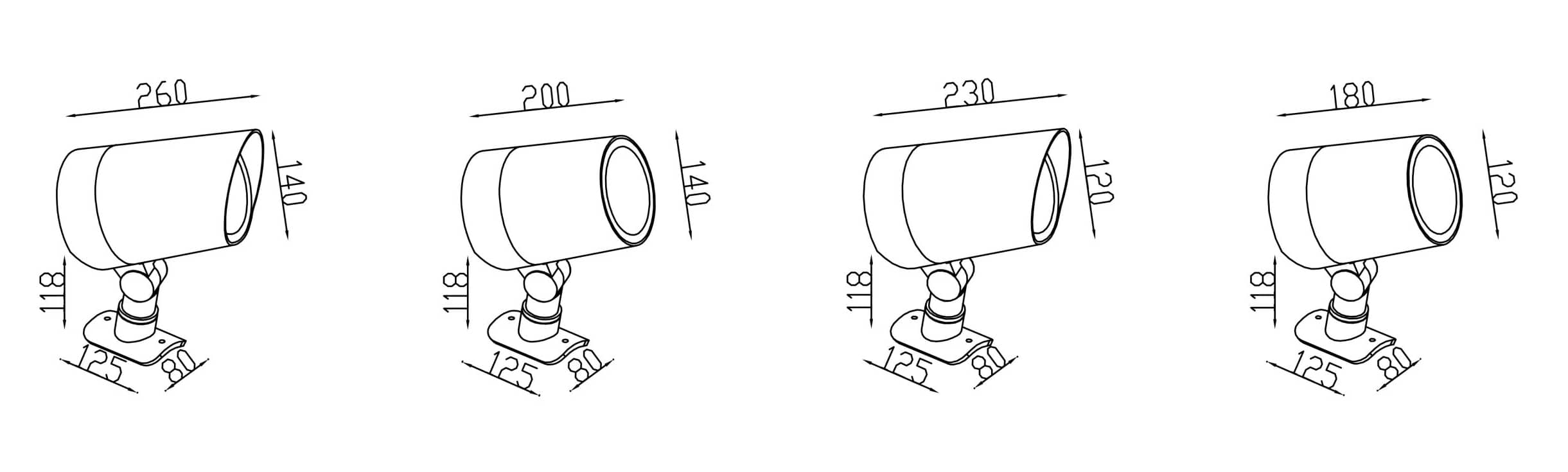

SP-GPA (3).jpg

Color	Model	Power(W)	LED Qty	Input Voltage	Control Method	Grey	Beam Angle(°)	Luminious(LM)	Light Source Type
Single Color	SP-GAP120-C	32	32*1W	24VDC	ON/OFF	-	15 / 24 / 60	2720	COB
	SP-GAP120-S	32	12*3W	24VDC	ON/OFF	-	5 /12 /20 /30 /60 /10x70/ 5x20	2720	SMD3030
	SP-GAP140-C	50	50*1W	24VDC	ON/OFF	-	15 / 24 / 60	4250	COB
	SP-GAP140-S	50	18*3W	24VDC	ON/OFF	-	5 /12 /20 /30 /60 /10x70/ 5x20	4250	SMD3030
Single Color Dimming	SP-GAP120-C	32	32*1W	24VDC	DMX512	65536	15 / 24 / 60	2720	COB
	SP-GAP120-S	32	12*3W	24VDC	DMX512	65536	5 /12 /20 /30 /60 /10x70/ 5x20	2720	SMD3030
	SP-GAP140-C	50	50*1W	24VDC	DMX512	65536	15 / 24 / 60	4250	COB
	SP-GAP140-S	50	18*3W	24VDC	DMX512	65536	5 /12 /20 /30 /60 /10x70/ 5x20	4250	SMD3030
RGB	SP-GAP120-C	32	32*1W	24VDC	DMX512	65536	15 / 24 / 60	-	COB
	SP-GAP120-S	32	12*3W	24VDC	DMX512	65536	5 /12 /20 /30 /60 /10x70/ 5x20	-	SMD3030
	SP-GAP140-C	50	50*1W	24VDC	DMX512	65536	15 / 24 / 60	-	COB
	SP-GAP140-S	50	18*3W	24VDC	DMX512	65536	5 /12 /20 /30 /60 /10x70/ 5x20	-	SMD3030
RGBW	SP-GAP120-C	32	32*1W	24VDC	DMX512	65536	15 / 24 / 60	-	COB
	SP-GAP120-S	32	12*3W	24VDC	DMX512	65536	5 /12 /20 /30 /60 /10x70/ 5x20	-	SMD3030
	SP-GAP140-C	50	50*1W	24VDC	DMX512	65536	15 / 24 / 60	-	COB
	SP-GAP140-S	50	18*3W	24VDC	DMX512	65536	5 /12 /20 /30 /60 /10x70/ 5x20	-	SMD3030
