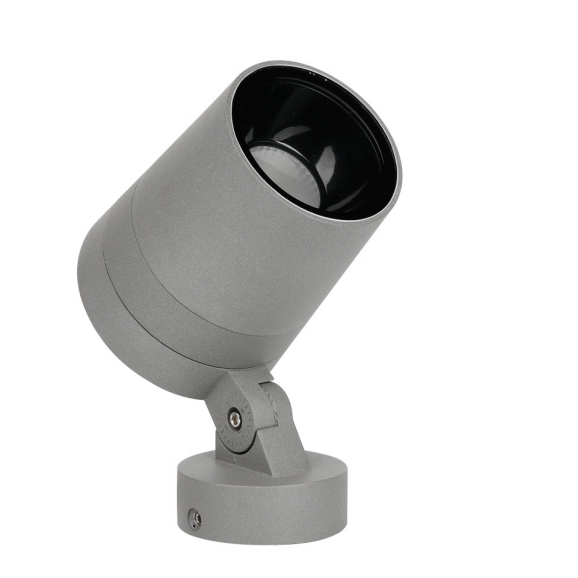

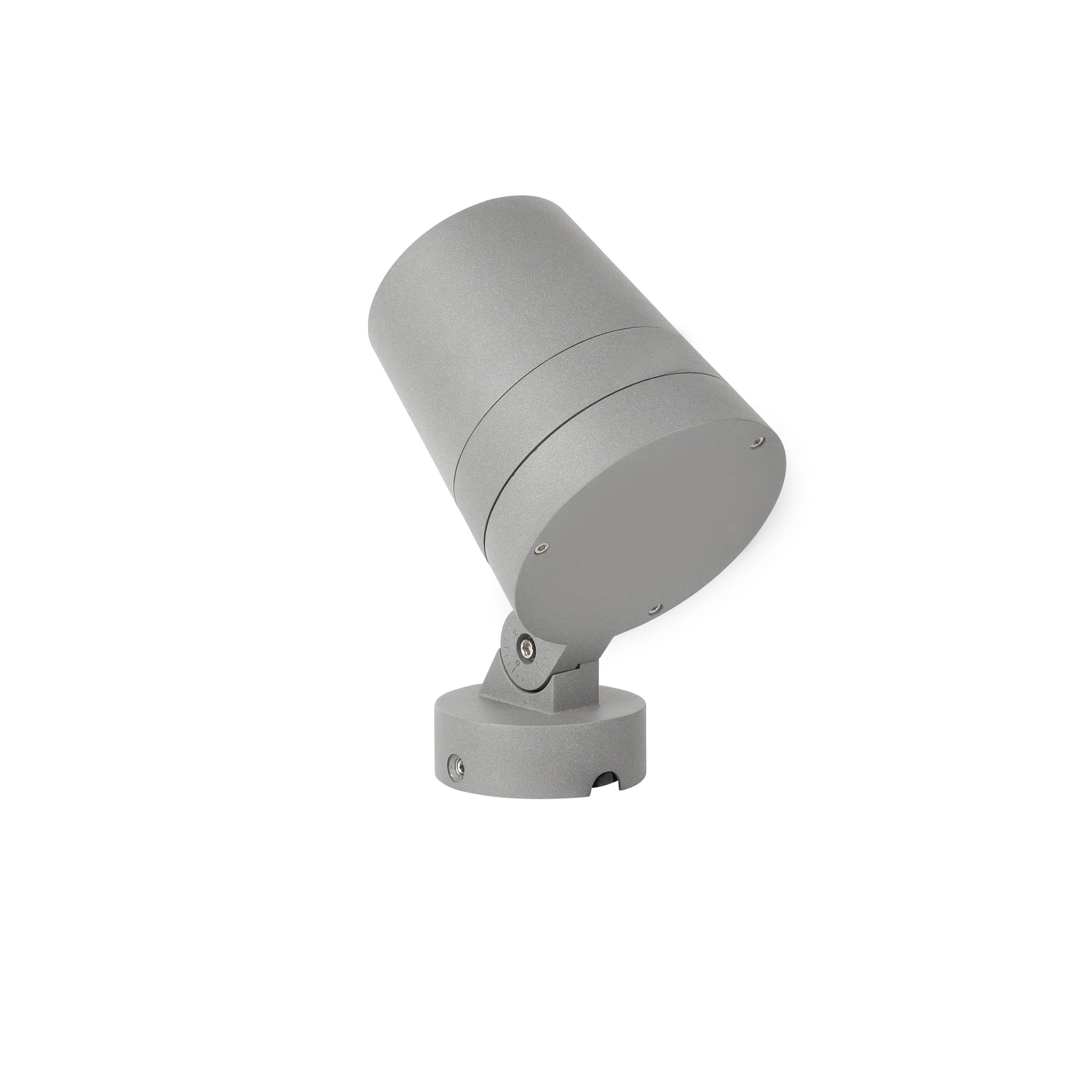

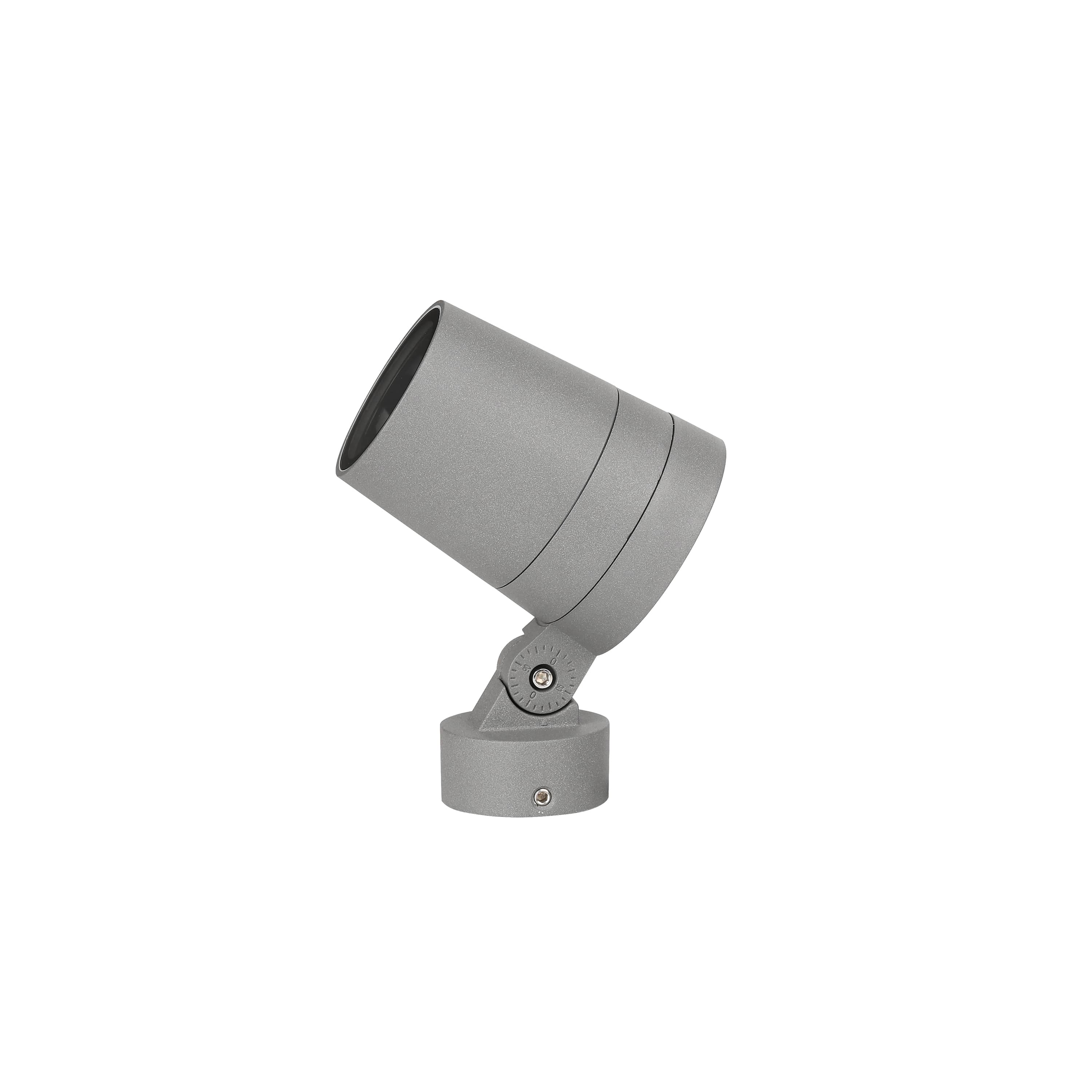

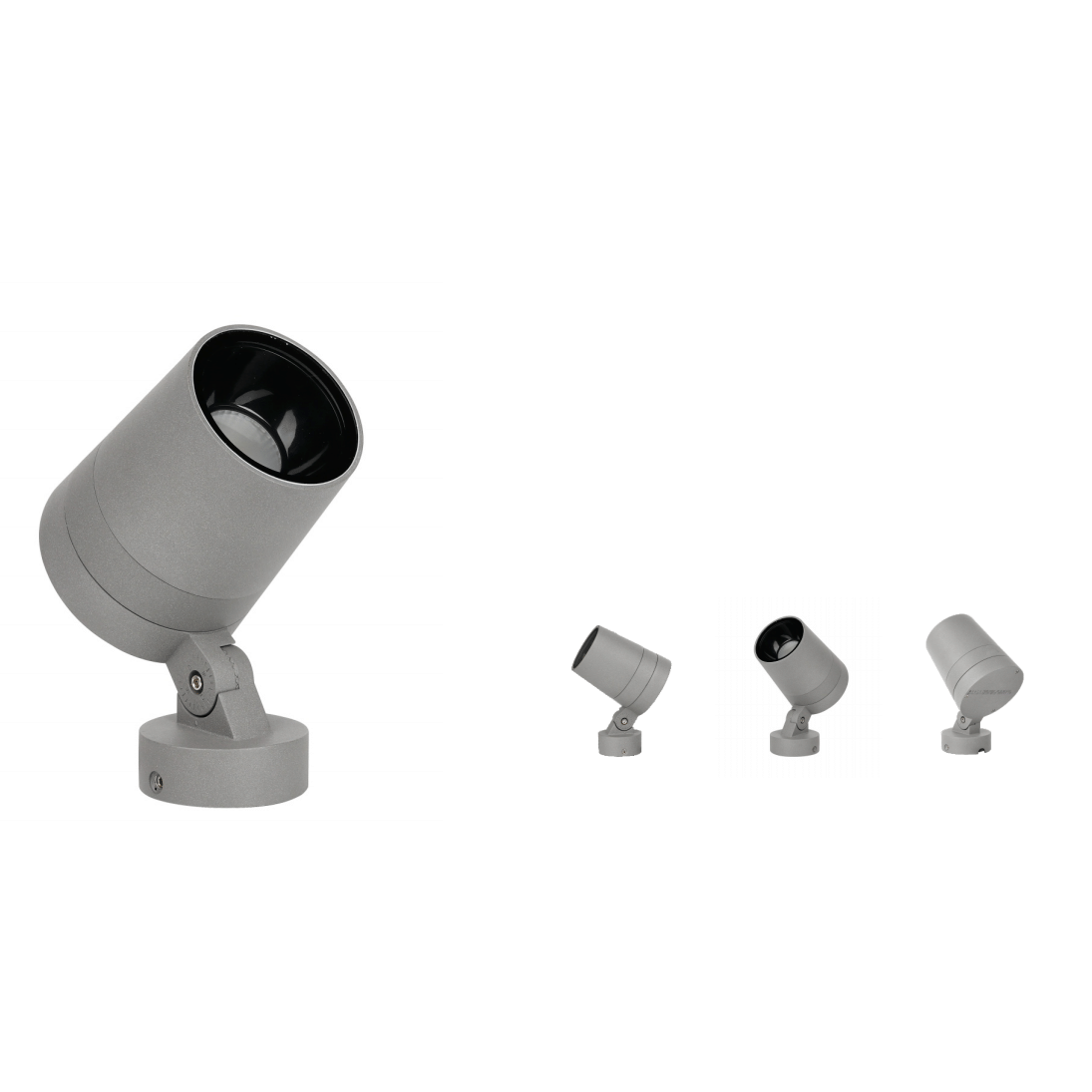

SP-RC/RS Series LED Garden Spot Light IP65 Waterproof Aluminum COB Single Color DC24V

LED Garden Spot Light IP65 Waterproof Aluminum COB LED Single Color DC24V

New Design Surface Mounted LED Architectural Floodlights Outdoor LED Luminaires for Highlighting Facade Light Fixture

Housing： 12#Die-casting outdoor powder painting aluminum.T=60-80μm Adhesion of ISO Glass 1/ASTM Glass 4B

Glass: Tempered glass.T=4mm

Lens: Optical lens,effciency≥85%

Cable gland: IP68, PG9 nickel coated copper

Gasket: Molding shaped silicone double seal

LED: Epistar / CREE  Ra>80

PCB: Excellent heat conductivity aluminum, co-effcient of heat conductivity≥2.0w/mk

Driver: Constant current output / single color LED=1-circuit output / RGB 3in1 LED=3-circuit output / RGBW in 1 LED = 4 circuit output

Working termperature: -20℃~40℃

Power cable:  H05RN-F  2*0.75mm²L=1m(24VDC) /  H05RN-F  3*0.75mm²L=1m(110V / 220VAC 50-60Hz) / H05RN-F  4*0.75mm²L=1m(for RGB) /  H05RN-F  5*0.75mm²L=1m(for RGBW)

Spike: PVC;  Mounting base / Pole:  Powder painting die-casting aluninumle; Clamp Bracket:  Stainless Steel 304/316

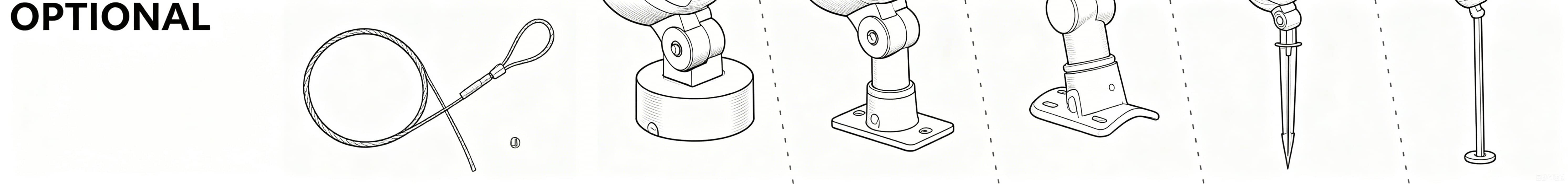

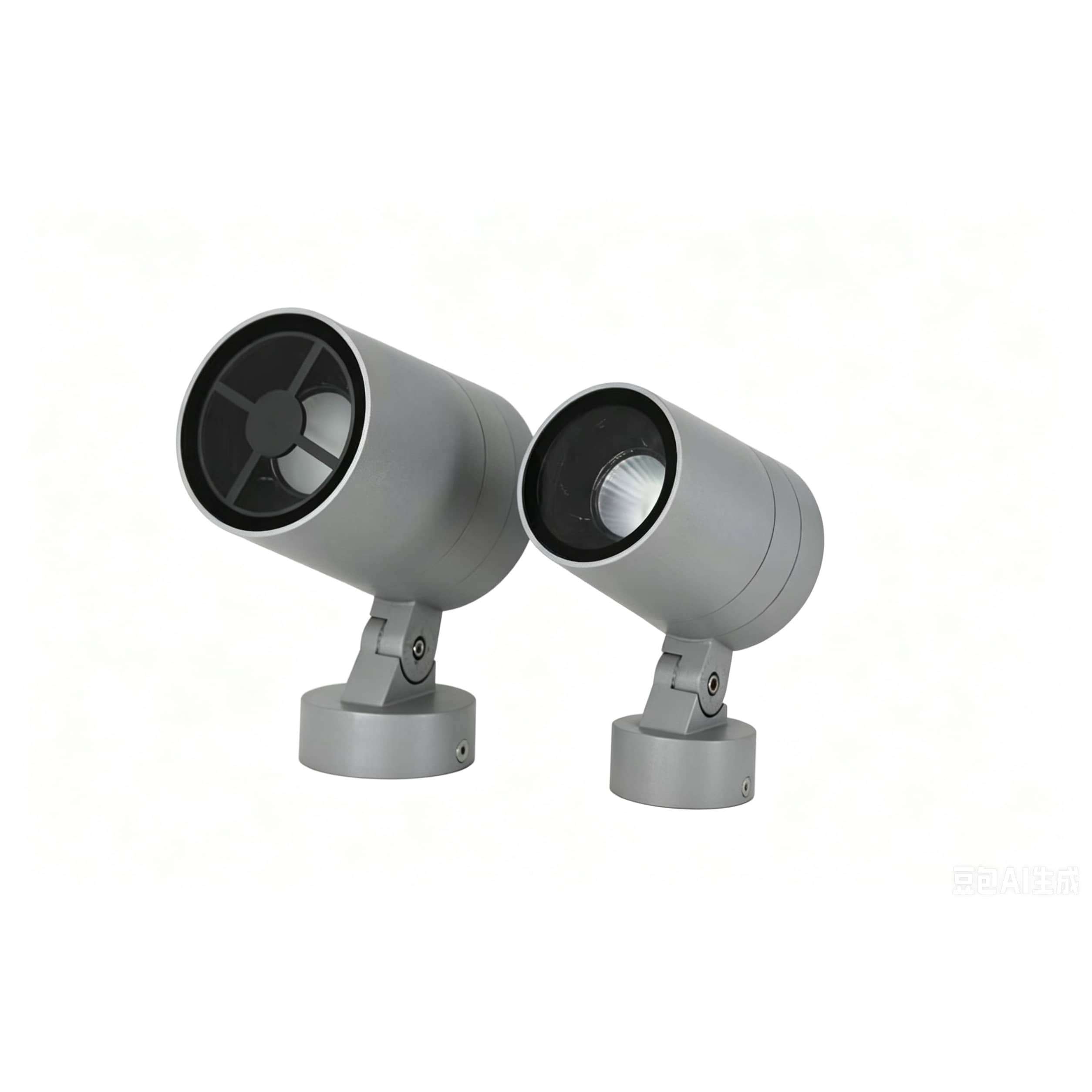

Anti-glare accessories : Honeycomb / Angled Snoot/ Full Snoot  optional

Installation accessories: Spike, Pole, Clamp bracket optional
